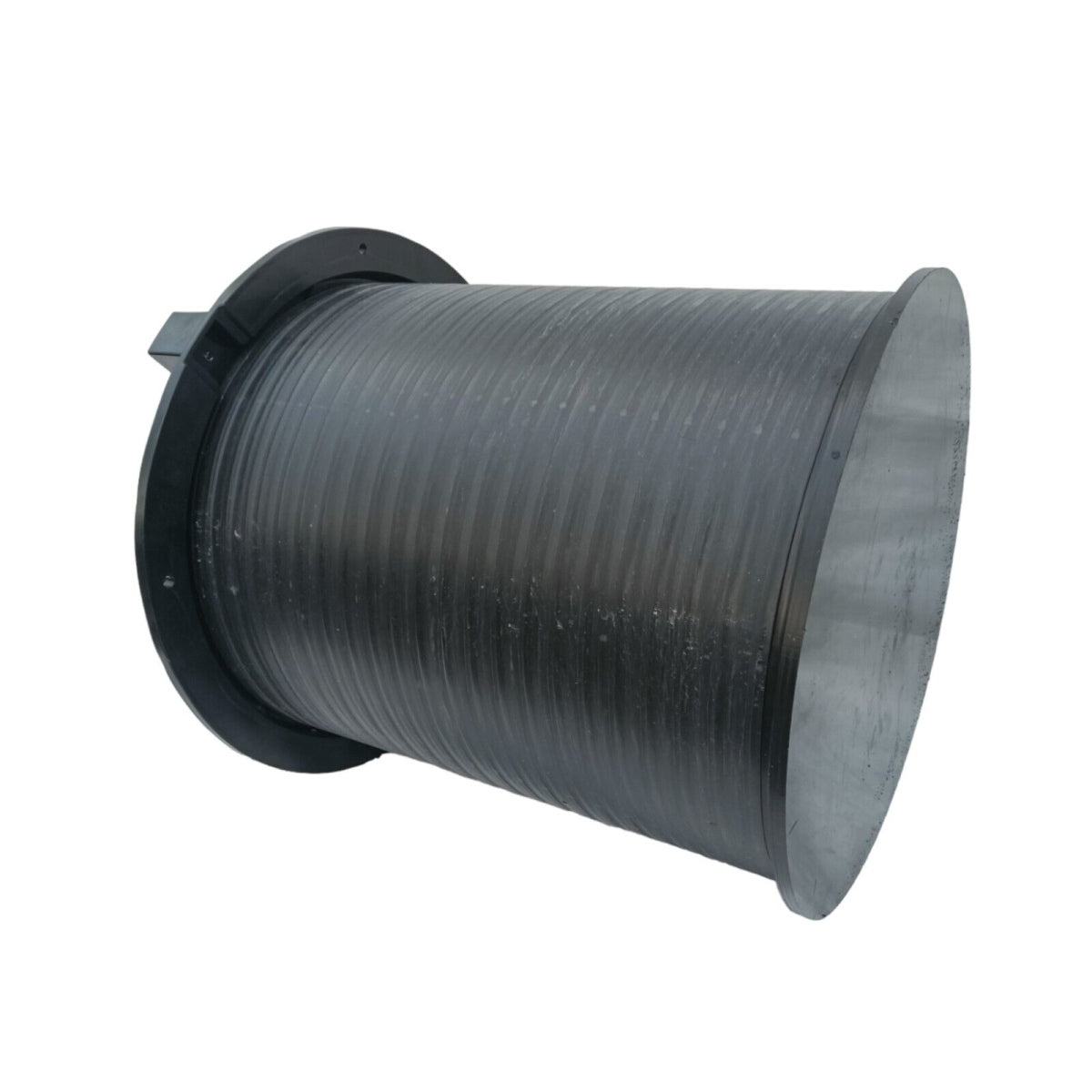

Inspection shaft 60x60cm inspection shaft with manhole cover

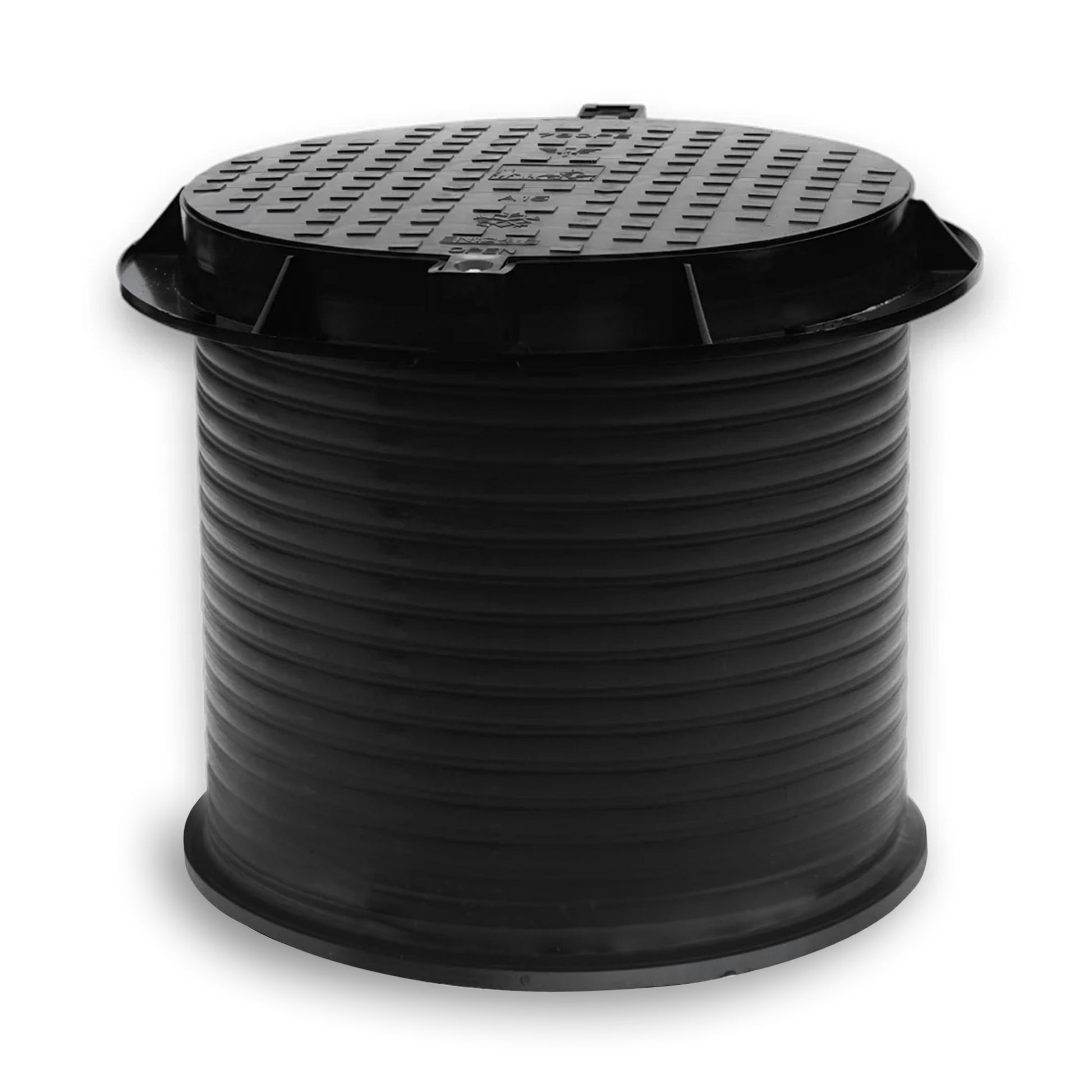

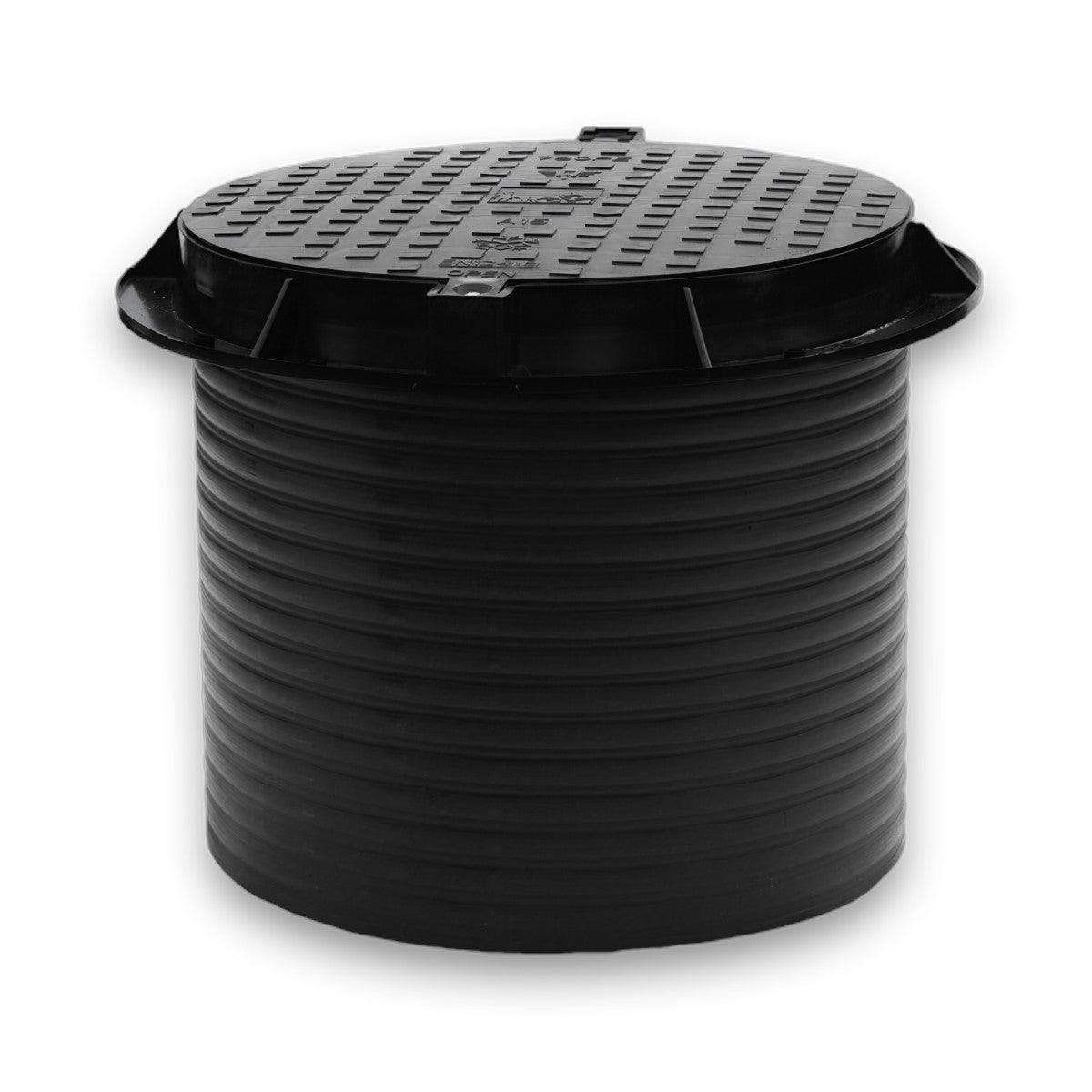

Well shaft with bottom, lid BLACK

Distribution shaft, inspection shaft, revision shaft, earth shaft made of plastic complete with lockable cover (with base)
The plastic well shaft is of significantly higher quality than a shaft made of concrete compensation rings.

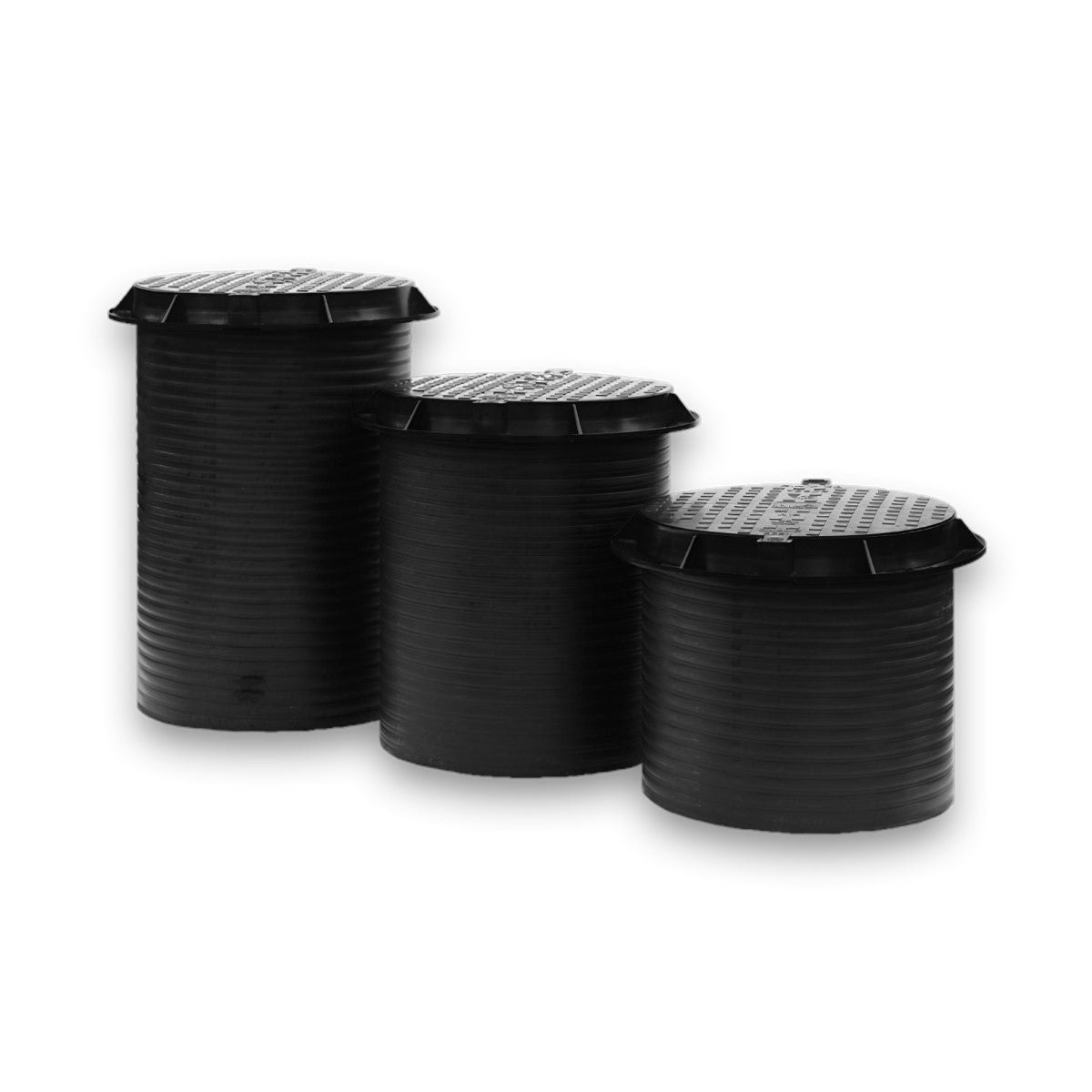

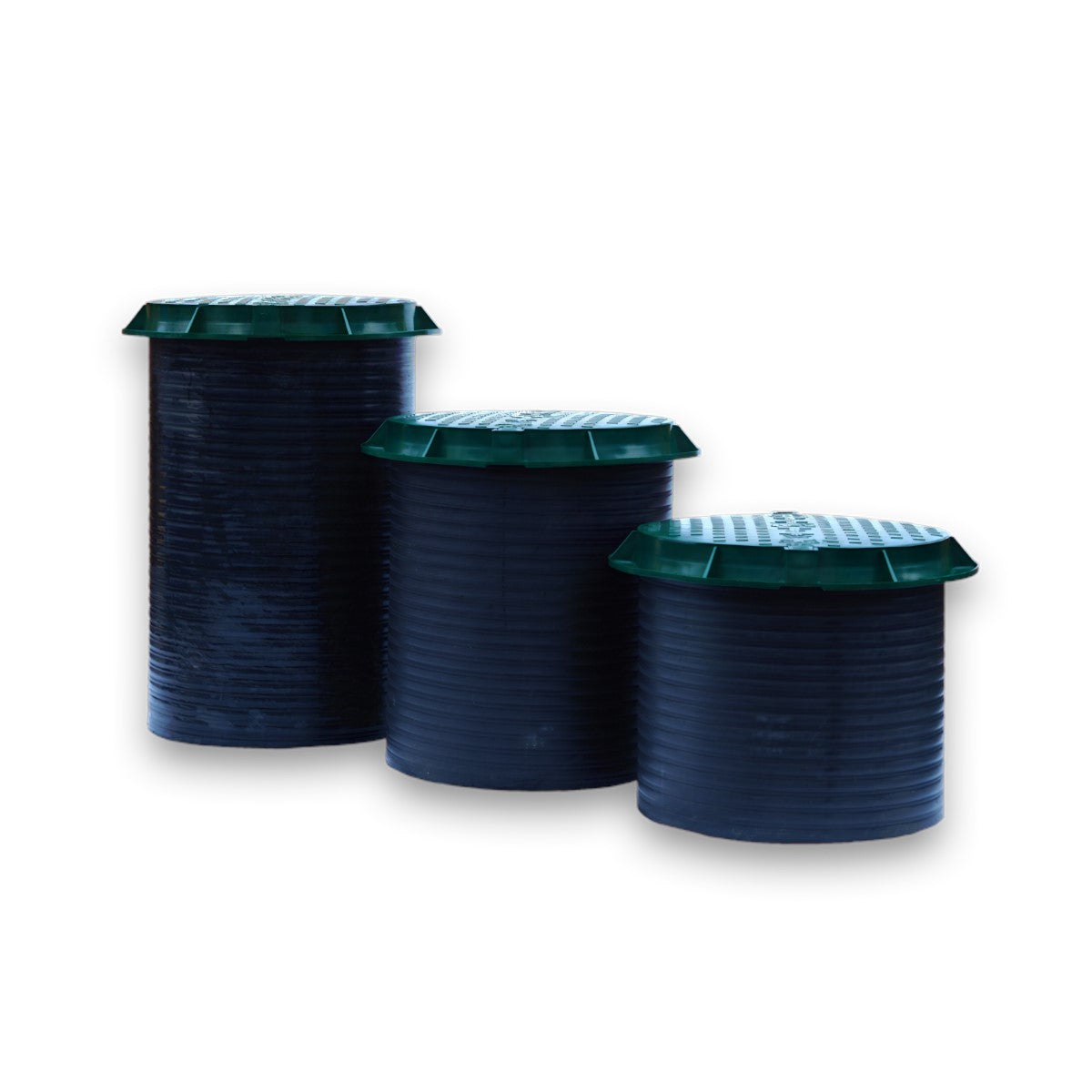

The total height of the shaft, including the lid, is approximately 80 cm. (Other heights available upon request)
Inside ø 60cm

Total weight approx. 20kg

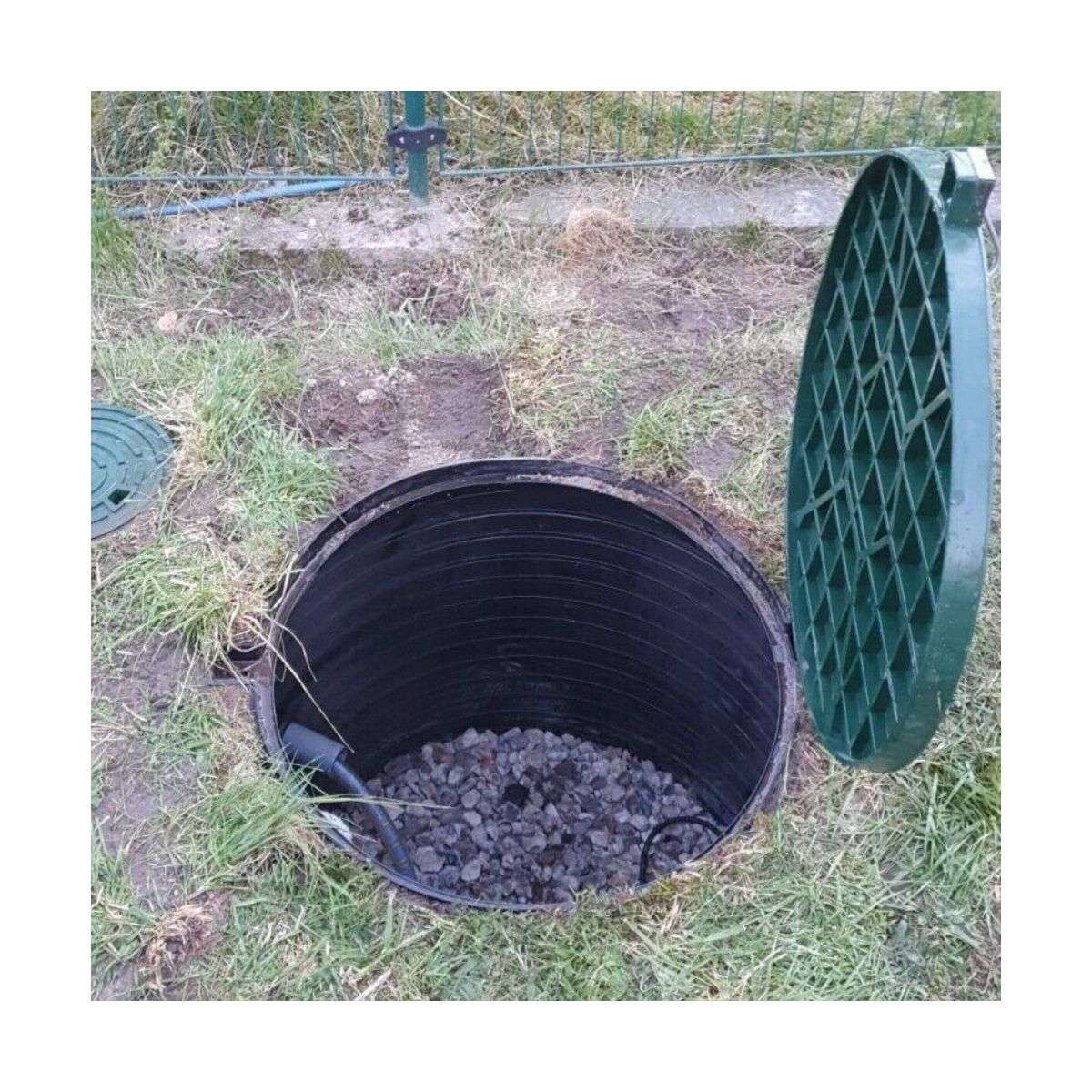

The shaft is easy to transport and can be installed quickly without heavy equipment (even in winter).

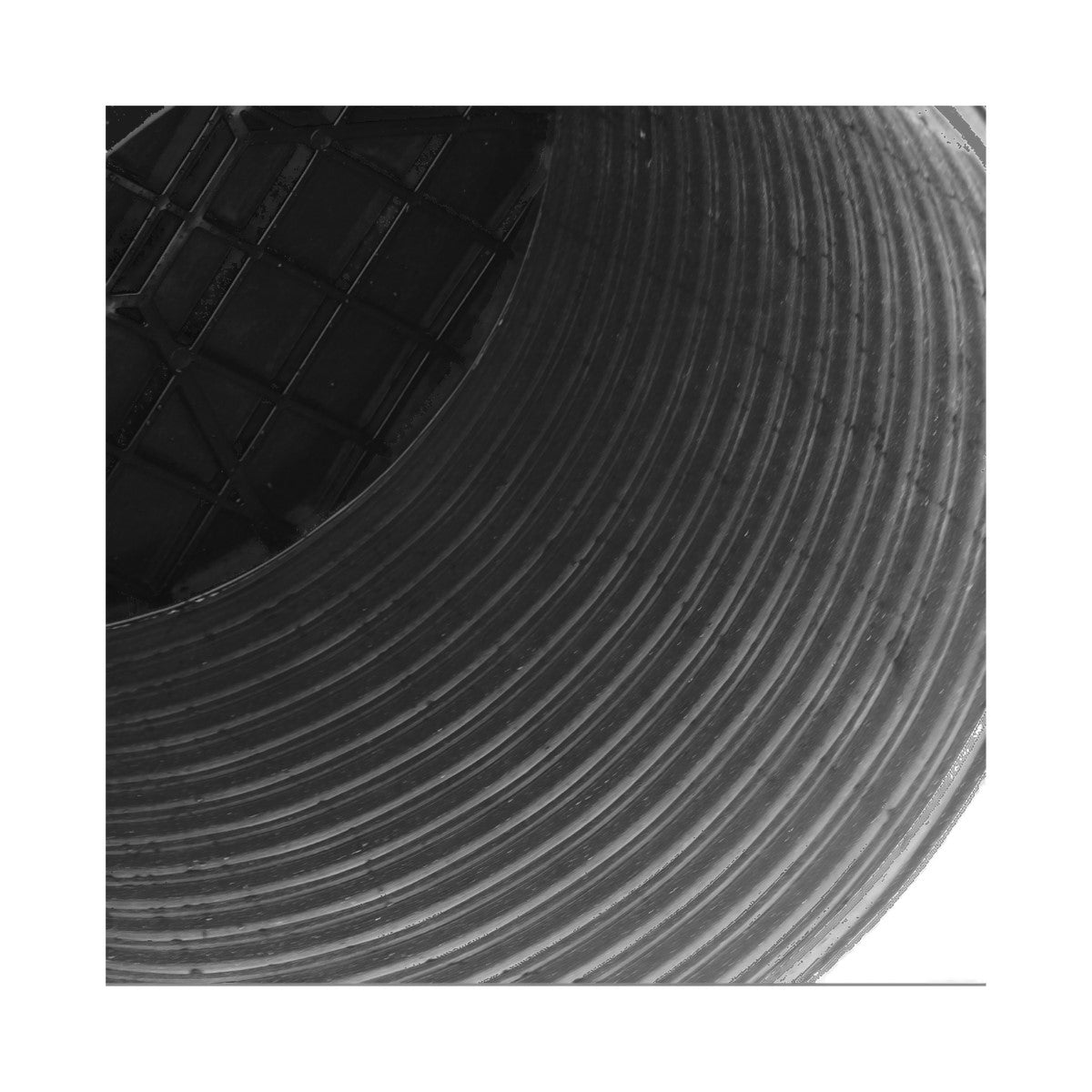

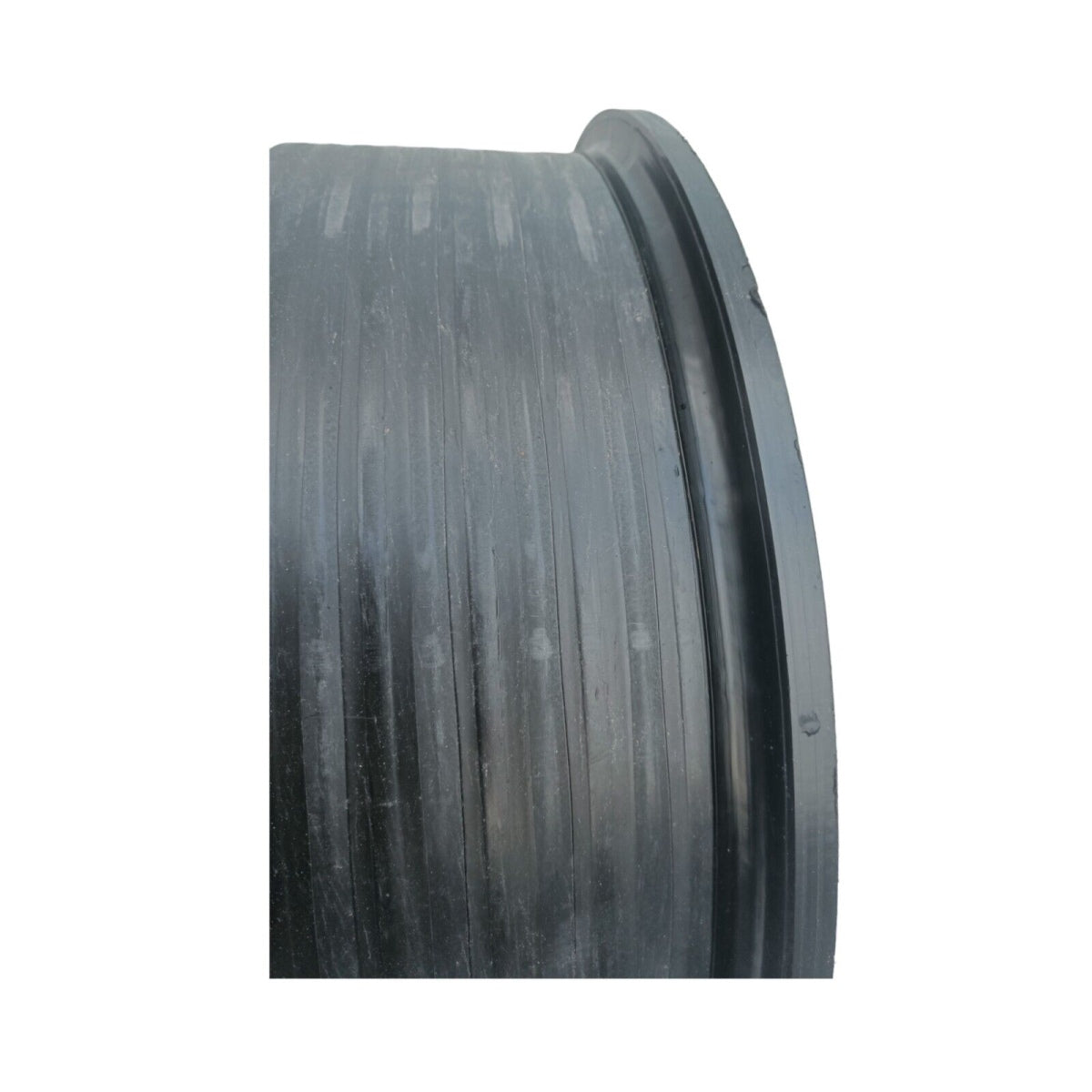

Due to the monolithic construction, there are none of the typical joints found in concrete shafts, which have to be sealed with mortar, foam, or similar.

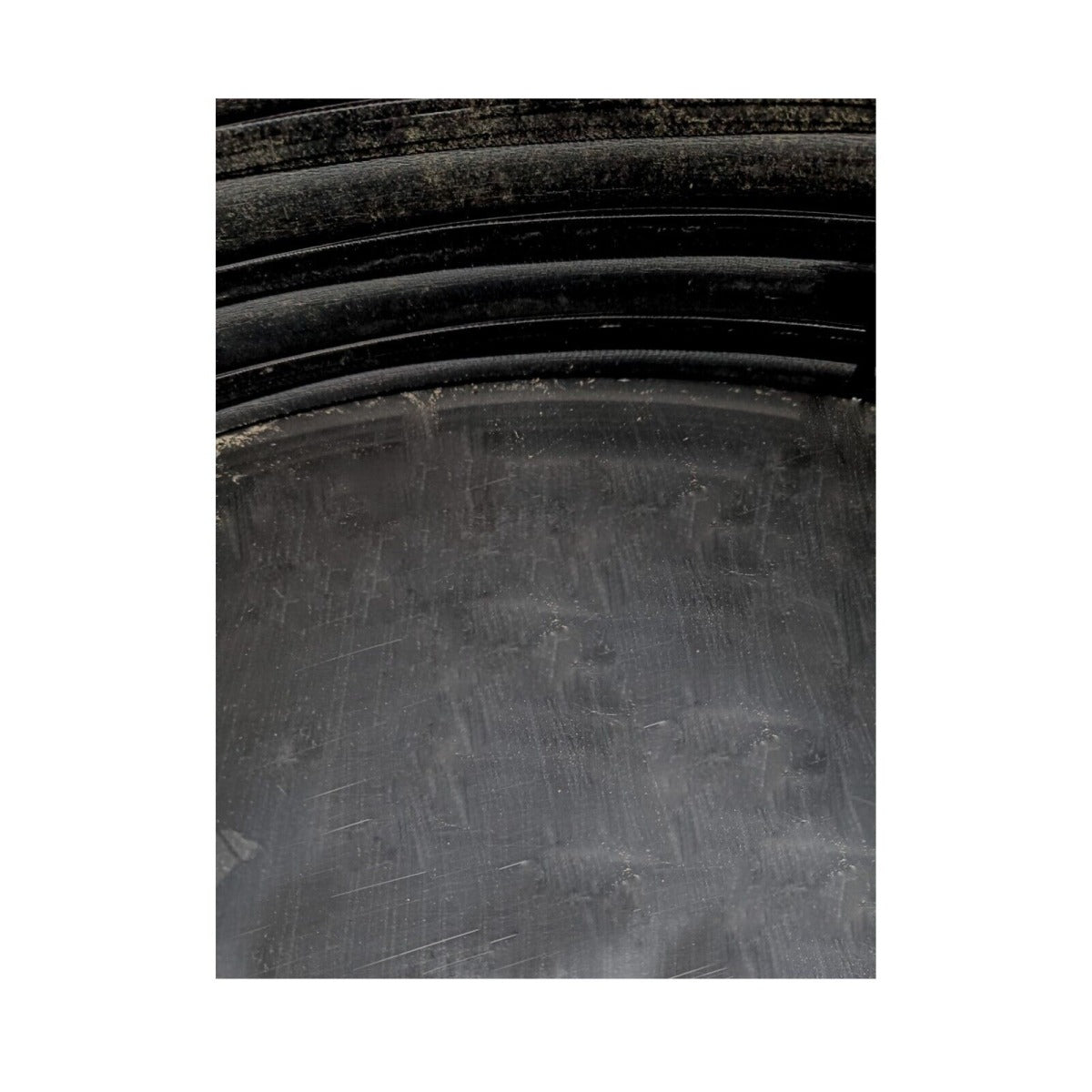

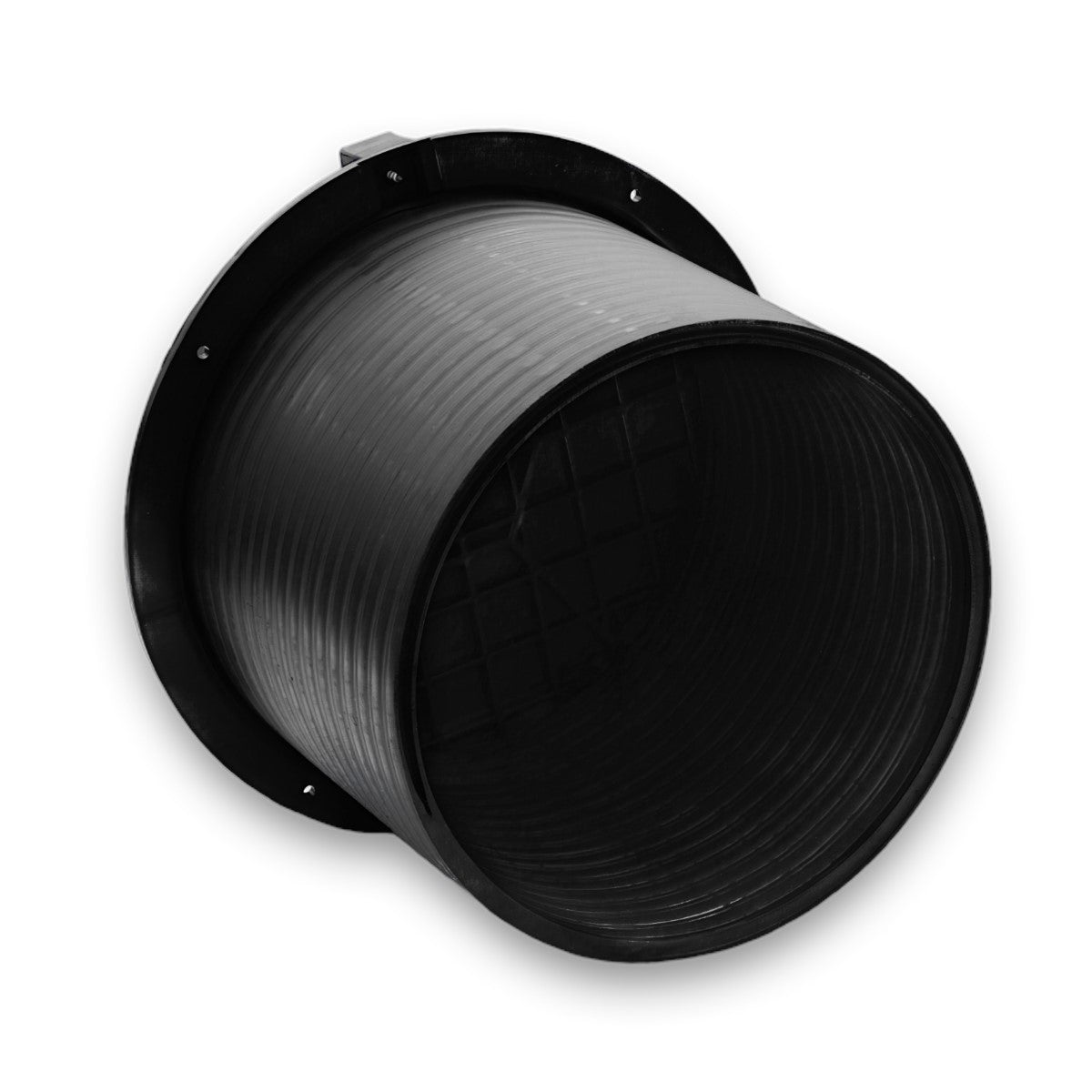

The plastic shaft is continuous from the beginning of the lid to the bottom, making it leak-proof. The bottom and the ring support from the lid to the wall are also welded, making it watertight.

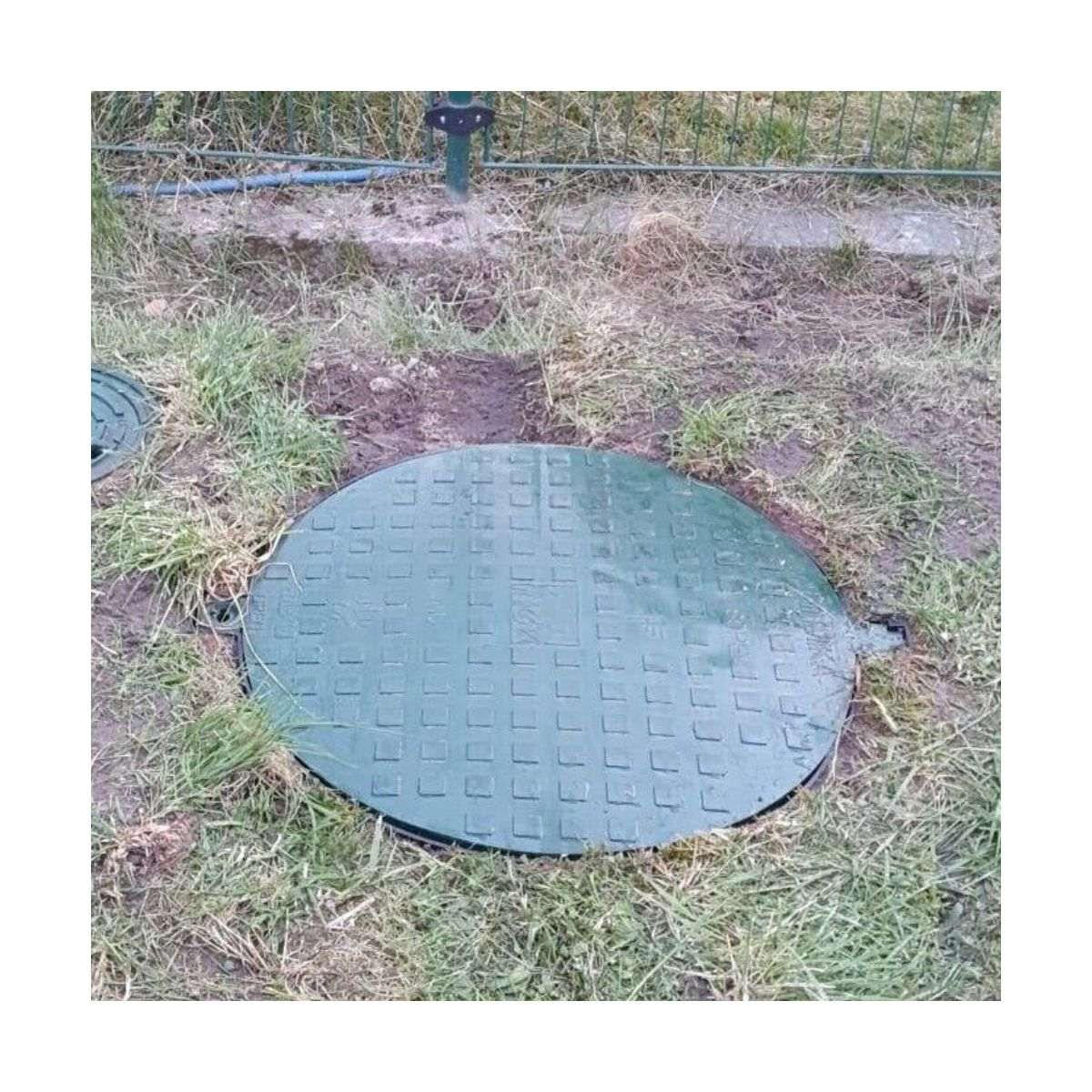

Load class A15 - for pedestrian zones and gardens

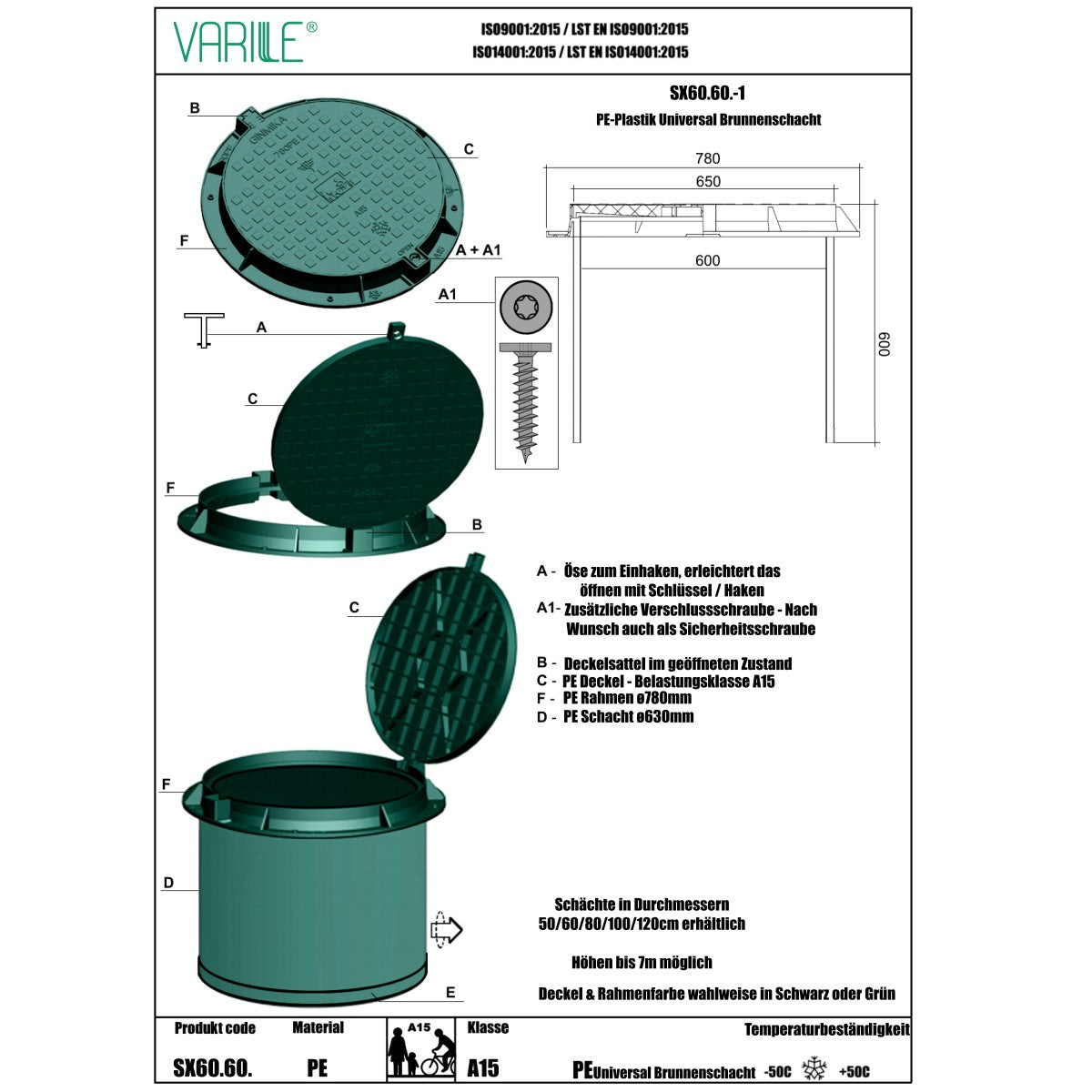

• Plastic manhole cover (loadable up to 1.5T)
• Lid weight only approx. 3 kg
• ø lid: 650 mm
• ø frame: 770 mm
• Total height: approx. 600mm

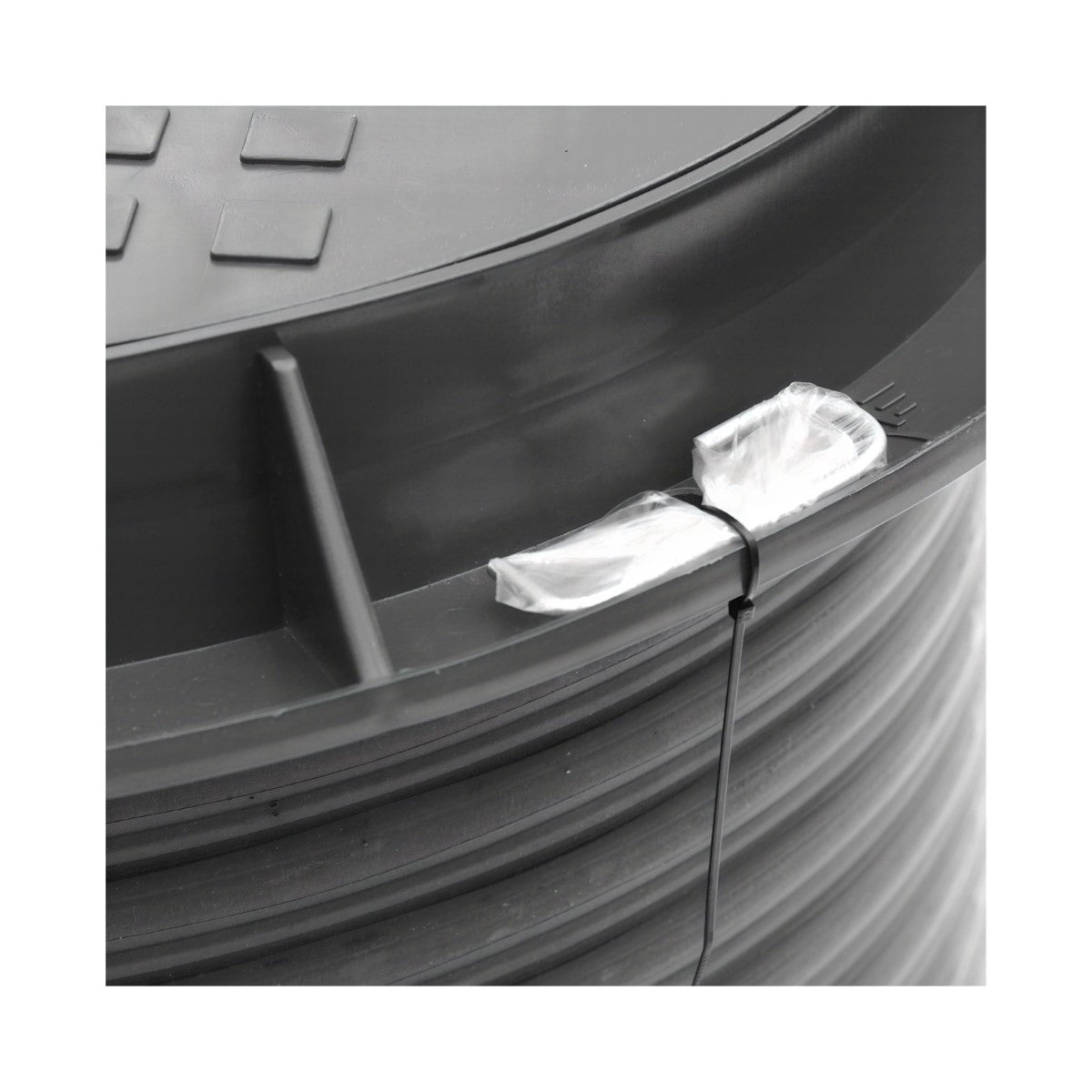

• With child safety lock

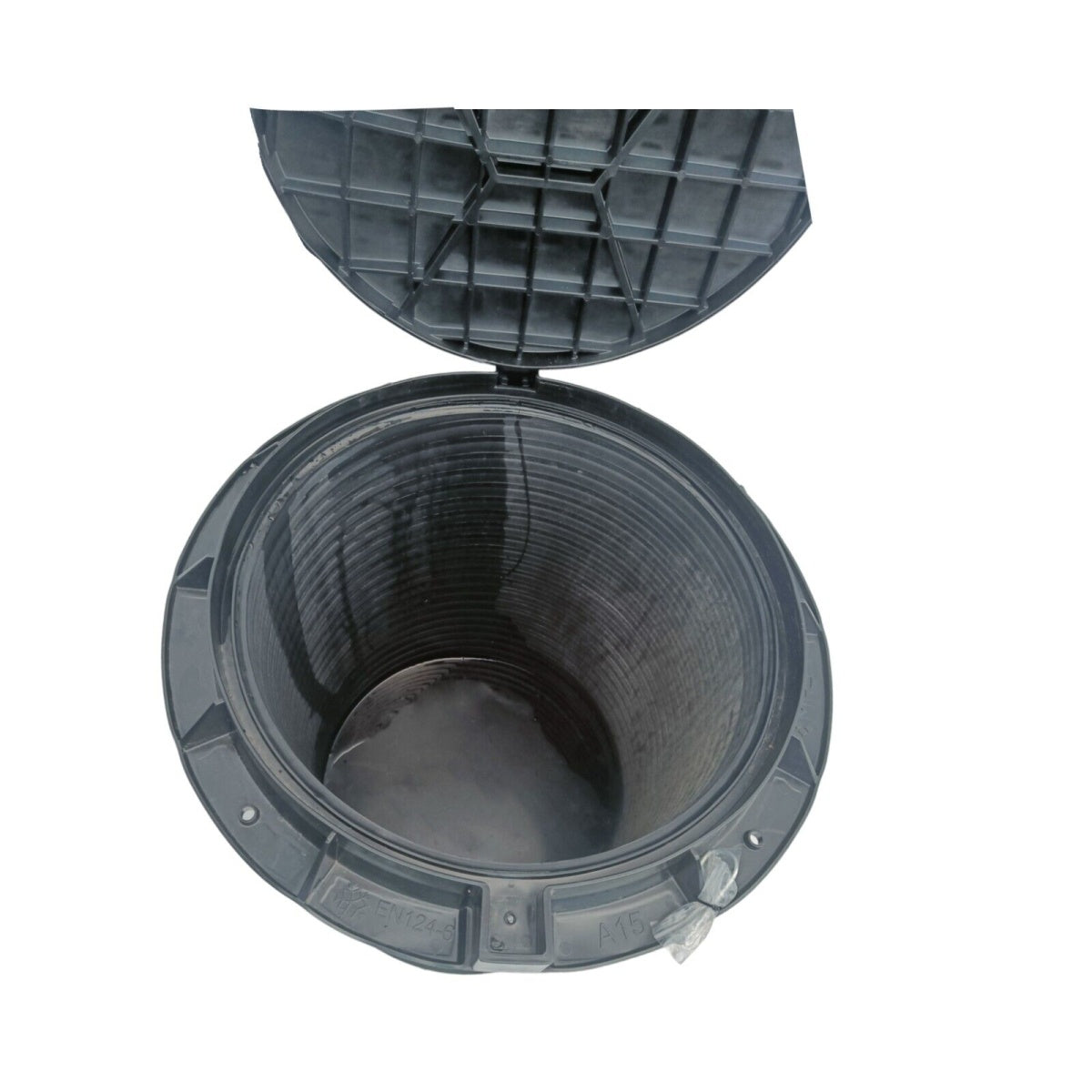

• Hold function when lid is open
